| 是否进口：否 | 产地：美国 | 品牌： 伊顿BUSSMANN巴斯曼 |
| 型号：FWP-_A14Fa | 产品系列：FWP-_A14Fa | 结构：插入式熔断器 |
| 额定电压：690V | 熔断器额定电流：9A | 保护对象：半导体元件 |
| 3C证书编号：281502038759939 |
商品描述
New - gR operating class with and without striker

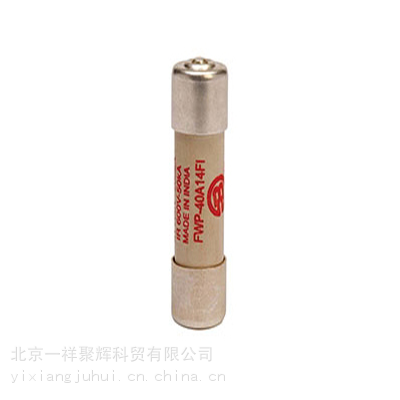

Eaton’s Bussmann series FWP 14x51 mm class gR fuses provide full range overload and short-circuit protection and are used to protect AC/DC drives and semi conductors.
They are available with an optional striker to provide local indication of fuse status or work in the CH14 modular fuse holder to provide remote fuse indication capabililty.
aR operating class with and without striker
Eaton’s Bussmann series FWP 14x51 mm class aR fuses provide short-circuit protection and are used to protect AC/DC drives and semi conductors.
They are available with an optional striker to provide local indication of fuse status or work in the CH14 modular fuse holder to provide remote fuse indication capabililty.
Description:
Ferrule style high speed fuses with and without indicating striker.
Ratings:
Volts: 690Vac (IEC); 700Vac (UL); 800Vdc (5-50A)
Amps: 1-50A
IR: 200kA RMS Sym. 50kA @800Vdc
Agency Information: CE, UL Recognition, CSA Component Acceptance for versions without indicator only.
Features and Benefits
? Excellent cycling capability and DC performance
? Low arc voltage and low energy let-through (I2t)
? Low watts loss in a compact size
? Used with finger-safe holders/blocks
Catalog Numbers
? Watts loss provided at rated current.
